Equipment

Metal Detectors

Metal Detector for the Food Industry, ideal for inspecting small and medium sized loose and packaged products.

Multi-frequency technology combined with advanced functions such as self-checking and automatic calibration ensure high performance. The possibility to configure the conveyor stop and reject collection systems allows the machine to be adjusted according to customer needs.

A wide range of accessories allows you to inspect the most common formats in the Food Industry, such as trays, bags, bottles, boxes of different shapes and sizes, among others. The mat made of plastic suitable for the food area allows the machine to be used even with loose products.

Multi-frequency technology

It results in a high level of immunity against environmental interference and an extremely high sensitivity to all magnetic and non-magnetic metals, including stainless metals, thus guaranteeing high level performances.

Simple and Functional Electronics

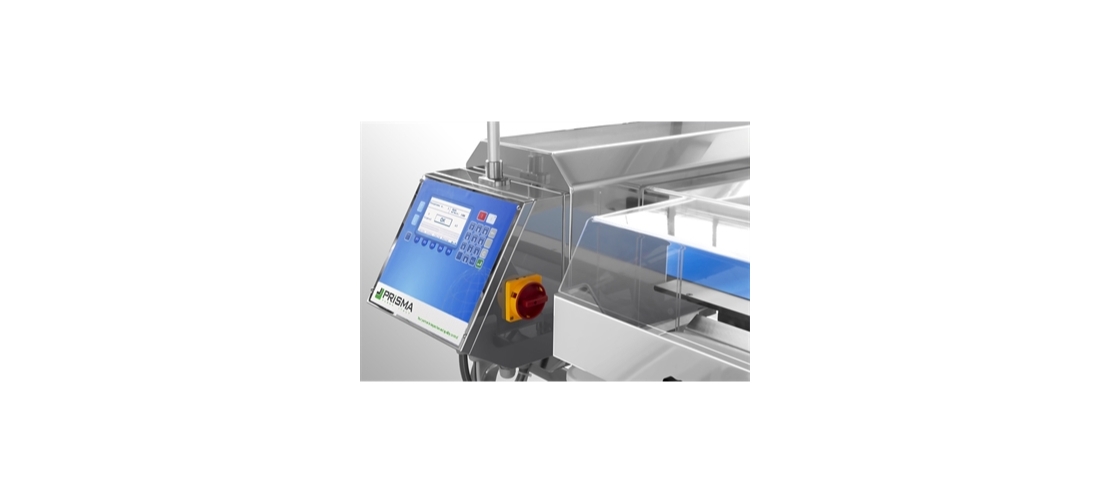

Digital alphanumeric display, with self-checking, automatic balancing and tracking functions. Digital operating principle of two-dimensional image. Possibility of phase adjustment and storage of up to 100 programs. It has an RS232 C type port. Access is protected by a multi-level password, so as to reduce human error to a minimum.

Stable, Safe and Easy-Maintenance Mechanics

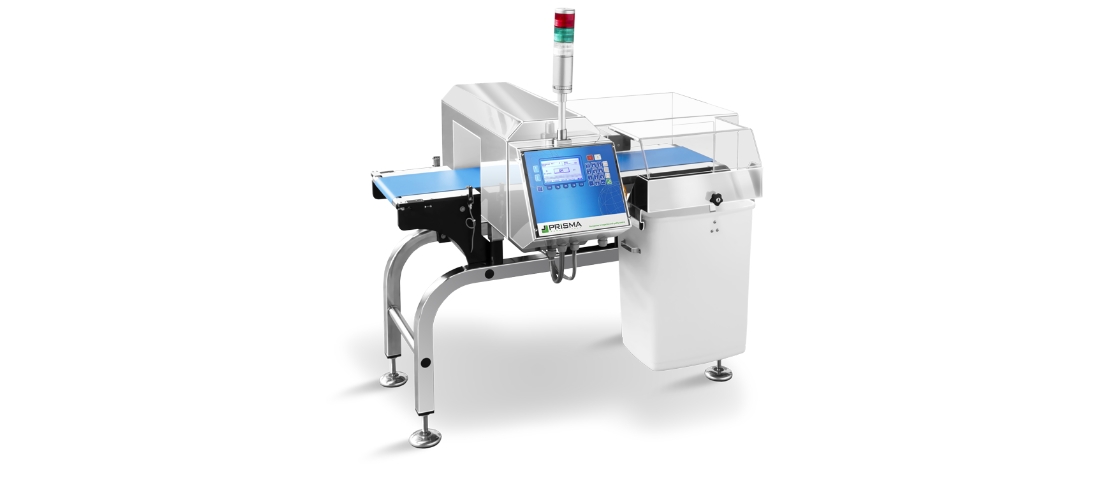

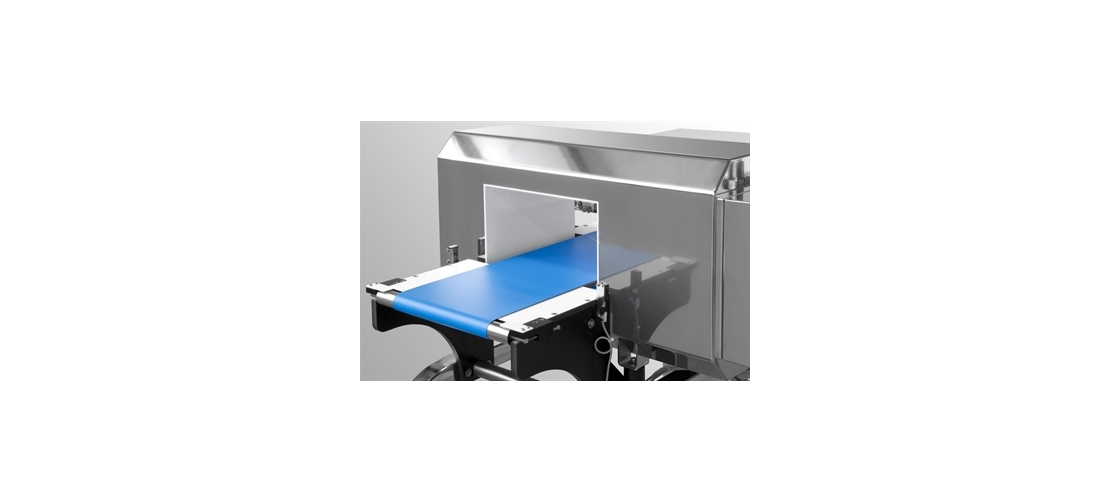

This equipment consists of a conveyor and a metal detector, available in various formats, to adapt to the product dimensions and inspection requirements. The metal detector support structure is made of stainless steel, speeding up cleaning operations. The machine can be configured to stop the equipment when it detects the presence of defective products or it can be equipped with a rejection and collection system. All models meet IP54 to IP65 protection standards.

Quality

Equipment made in Italy, manufactured entirely in stainless steel, capable of withstanding intense washing cycles, which can be carried out extremely quickly thanks to the quick-disassembly plates.

Compliance with Standards

This equipment complies with ISO-FDA HACCP, key directives (including but not limited to: FDA approvals, FAT/SAT IQ/OQ) and meets customer guidelines and standards (including but not limited to: BRC and Marks & Spencer).

Return on Investment

Prisma's range of equipment allows for major savings, drastically reducing product waste, false detections or production stoppages. Everything translates into a fast return on investment, thanks to the high quality of the materials and the durability of the state-of-the-art equipment.


Technical Data

Weight Limit

Up to 10,000 gr

Linear Speed

Up to 65 m/min

Compressed air consumption

1 Nl

Power supply

230 V 50/60 Hz Single Phase

Electric consumption

650 W

Climatic Environment

5ºC to 40ºC
