Equipment

Pallet Wrapping Machines

If the product isn’t loaded onto a wrapping machine, it’s the wrapping machine that moves around the product. Here’s OSCAR is designed for versatility and mobility needs, where immediate “on site” wrapping is needed.

It can be easily moved thanks to handlebar equipped with buttons for handling or moved with forklift.

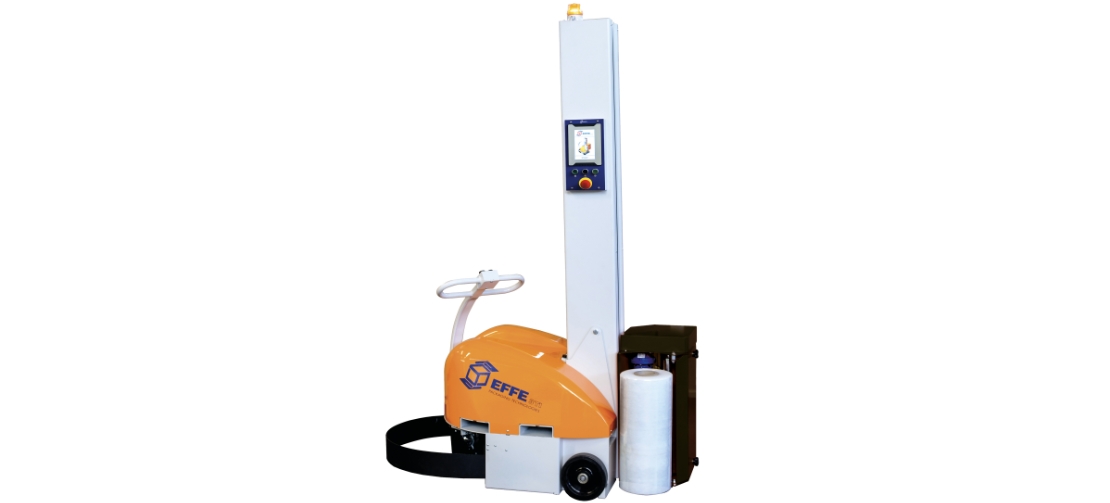

Robot OSCAR V.5 features:

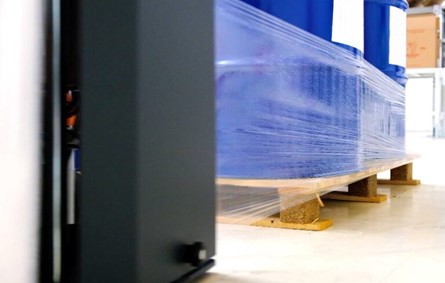

  • Film carrier with PRE-STRETCH SYSTEM 200% (optional 100%, 150%, 250%)

PRE-STRETCH = SAVING

The motorized pre-stretch system is a special device that ensures the use of the ideal amount of film.

The system allows you to wrap light and unstable products that would not wrapped up with traditional systems. The stretch film is dispensed in the right quantity by rollers driven by a motor controlled by an electronic system that measures the speed and keeps the film tension constant over the entire wrapped product.







  • Product height detected by photocell
  • Variable film carrier speed from 3 to 5 m/min.

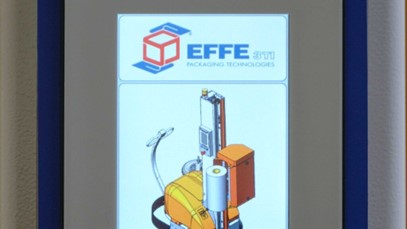

  • Touchscreen control panel
  • Speed adjustment up to 1,1 m/s with gradual start and stop
  • Advanced working cycle programming





  • Patented driving and traction system

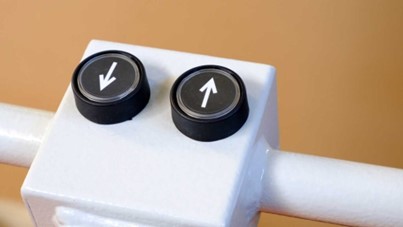

  • Manual movement with push buttons on directional rudder
  • Hinged column for transport









  • Top and bottom reinforcement wrapping
  • Reinforcement wrapping with “step” cycle
  • Separate film tension adjustment for each cycle position
  • Intermediate reinforcement with altitude and speed setting
  • End film and film breaking report
  • Battery status report

Technical Data

Dimensions WxLxH

690x1060x2100 mm

Minimum package

600mm x 600mm

Working range per charge

more than 250 pallets

Complete charging cycle

8 hours (on-board charger)

Column height

2100mm

Weight

250Kg

Consumables

Here you can see the list of all the consumables we have at your disposal
