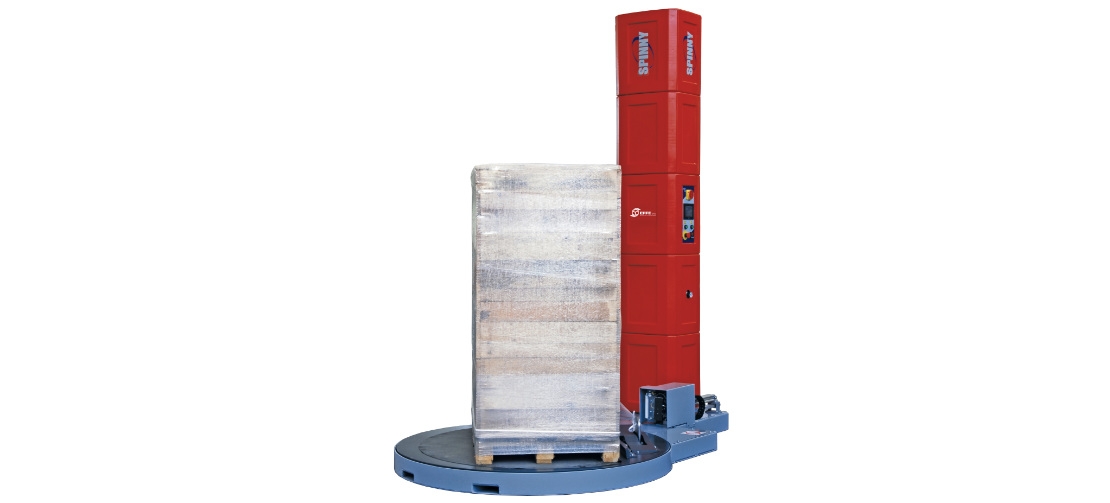

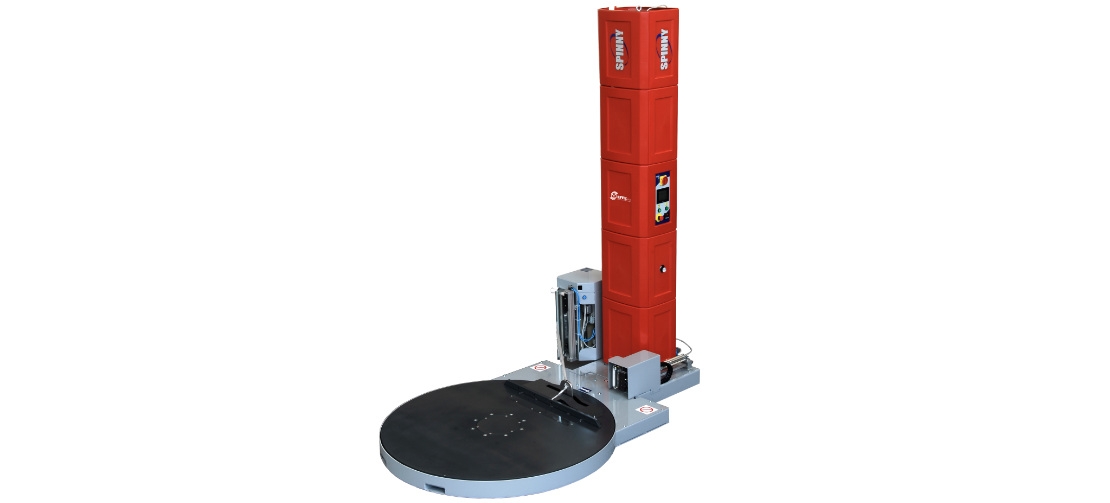

Spinny S500 Touch Semi-Automatic Wrapping Machine

Semiautomatic wrapping machine with rotating turntable, equipped with a film cutting and sealing system at the end of the cycle. Motorized pre-stretch for maximum savings in consumables, available in versions with 1 or 2 motors, with savings of up to 400%

Main Features

• Touch Screen control panel with 10 wrapping programs.
• The standard model is designed for wrapping pallets with stretch film, having dimensions up to 1200 mm (L) X 1000 mm (W), with load capacity up to 2000 kg.
• The rotating table is available with diameters of 1650 mm and 1800 mm for pallets up to 1200 x 1200 mm
• The column is available to wrap pallets with heights from 2100 mm up to 3100 mm.
• The rotation speed of the table is regulated by an inverter (adjustable rotation from 5 to 15 rpm).
• The saving of stretch film is guaranteed by a tested motorized pre-stretch system, available in two versions.
• Spinny S500, with film pre-stretch system up to 300% (or up to 400%, optional) is equipped with a Touch Screen control panel with 10 wrapping programs.
• The standard model is designed for wrapping pallets with stretch film, having dimensions up to 1200 mm (L) X 1000 mm (W), with load capacity up to 2000 kg.
• The rotating table is available with diameters of 1650 mm and 1800 mm for pallets up to 1200 x 1200 mm
• The column is available to wrap pallets with heights from 2100 mm up to 3100 mm.
• The rotation speed of the table is regulated by an inverter (adjustable rotation from 5 to 15 rpm).
• The saving of stretch film is guaranteed by a tested motorized pre-stretch system, available in two versions.

EASY AND VERSATILE

Complete the standard automatisms of SPINNY S500 by adding the remote control (optional) to make the machine even more versatile.

The MOTORISED PRE-STRETCH is a special device which allows the best utilization of the stretch film quantity; moreover, it permits to wrap light and unsteady pallets that couldn’t be wrapped with different frictioning systems.

The stretch film is supplied in the right quantity by the rollers that are operated by a motor, which is controlled by an electronic system that measures the speed and keeps the film tension constant on the whole pallet’s surface.

The motorized pre-stretch system, allows an efficiency of film UP TO 300%

Available on demand the DOUBLE MOTOR PRE-STRETCH.

DUAL MOTOR

The DUAL MOTOR version is designed to let you save even more film, obtaining more economic advantages. Based on the same principle of the single motor version, the DUAL MOTOR system offers variable stretch factor up to 400%!

WHY SPINNY S500?

• Proven pre-stretch system for significant film savings
• Perfect and uniform wrapping of all kind of pallets
• Pallet stability ensured for transport
• It improves the image of the product compared to manual wrapping
• Minimum maintenance required
• Extremely easy installation and use

SPINNY S500 is a pallet wrapping machine that immediately improves the efficiency of company logistics. Minimize operator interventions and risks in wrapping operations thanks to the standard automatisms and save money by maximizing the yield of the stretch film.

INDUSTRY 4.0!

SPINNY S500 in the datalogger version takes you straight into the world of INDUSTRY 4.0! An IOT device allows it to be managed through a SecureCloud-based system. Total control over

the machines, their position within the departments and the type of work performed, including any downtime and errors.
