Vacuum Packaging Machines

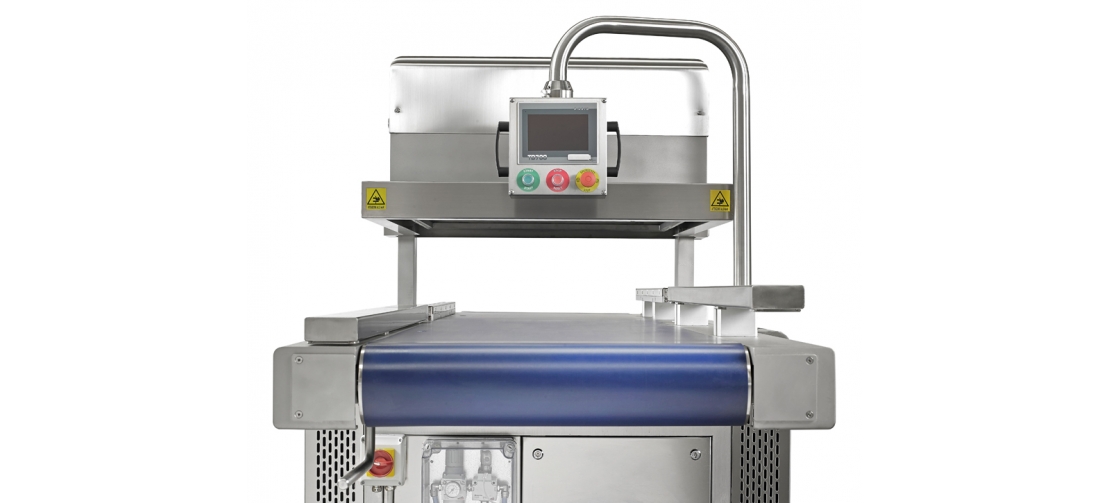

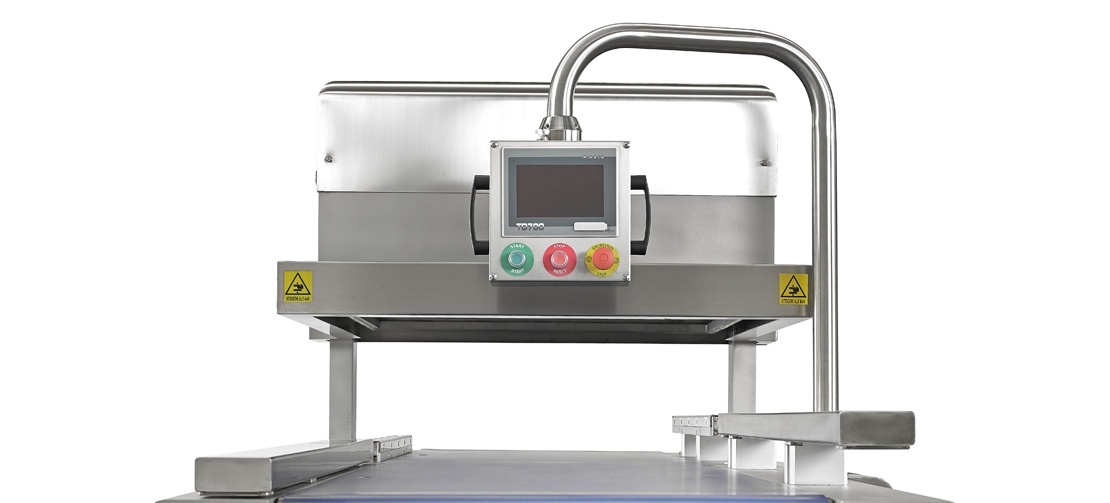

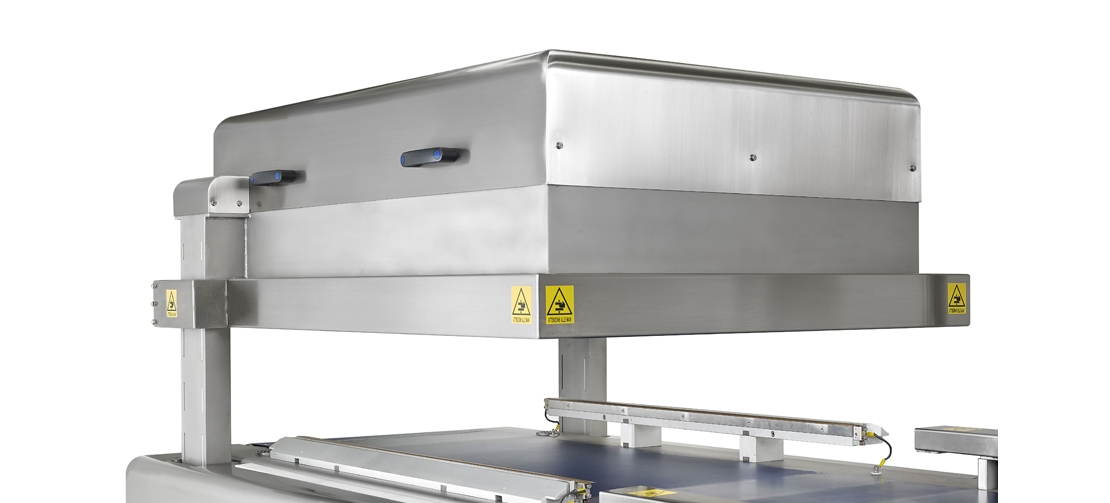

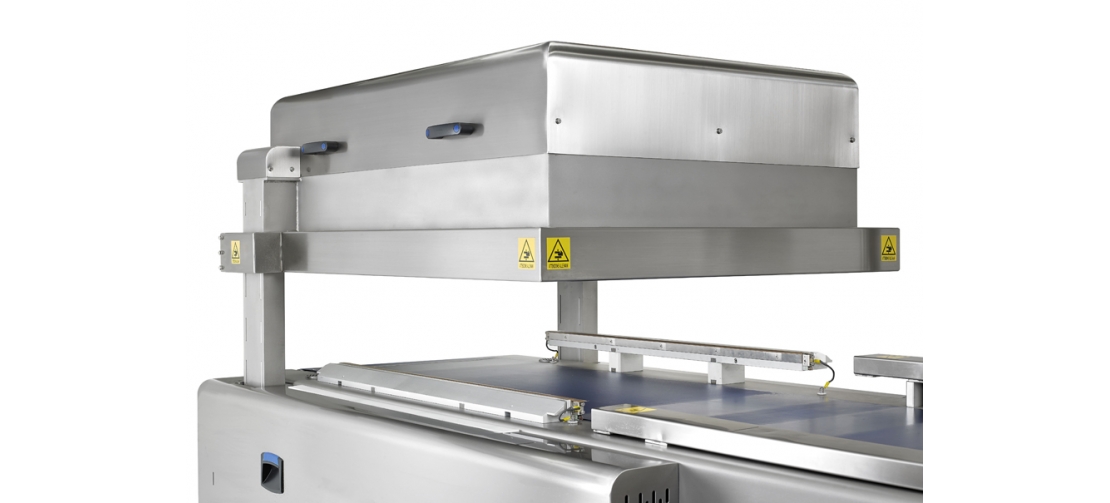

BMR 10 - 65 Vacuum Packaging Machine
The BMR 10 - 65, from BMR series belt vacuum packaging machines, is a fully automatic and high technological equipment for the vacuum packaging in bags of products such as:
- Cuts of meat of any kind
- Mortadella, hams, bacon, cured meats of any kind cheeses
- Any other element that can be vacuum packed
The BMR series belt vacuum packaging machines are particularly versatile and as such are well suited to inclusion within the line combined with a shrink tunnel or automatic packaging lines. They offer a mix of productivity and reliability ideal for any business.
The innovative design has been specifically created to ensure maximum efficiency during production and at the same time maximum simplicity for operations of cleaning and sanitising.
Completely made of stainless steel they are particularly suitable for very aggressive environments and in the packaging of fresh meat. All the applied solutions, the design of the machine and the materials used are the expression of the long experience and the continuos research for the maximum reliability. In the BMR line, the sealing bars adjustable height, makes the machine even more versatile.
Main frame
stainless steel AISI 304Loading Plane
stainless steel AISI 304Vacuum Chamber
stainless steel AISI 304Useful chamber height
250/400 mmSealing bars
1/2 x 1000 mmSealing bars
650 mmSealing Height
45/120 mmSealing system
mono-active / bi-activeConveyor Belt Speed
0/40 Mt/minProductivity
1-2 cycle/minElectric supply
400V 3PH+N+PEPneumatic supply
6/8 bar - dry and micro-filtered airAir consumations
15/25 Nl/minWeight
900 kgSuggested vacuum device
1x 300 mc/h - 7,5 KWDimensions
2970x1260x1900h mm
