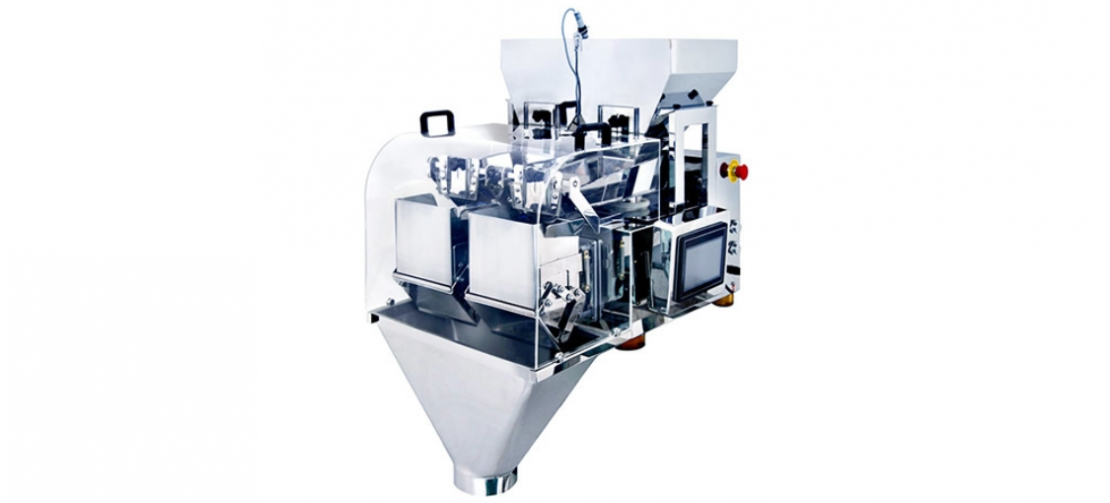

Double Linear Weighing Scale JW-AX2

JW-AX2 W Linear Double Weighing Scale

Developed to offer maximum precision and efficiency, the JW-AX2 Double Linear Weighing Scale is the ideal solution for automated dosing of small, granular or powdered products. Made entirely of AISI 304 stainless steel, it guarantees durability, hygiene and compliance with the highest food safety standards.

With a 60-litre hopper divided into two parts, it allows different products to be combined, making it extremely versatile for various industrial segments.

High-Precision Technology

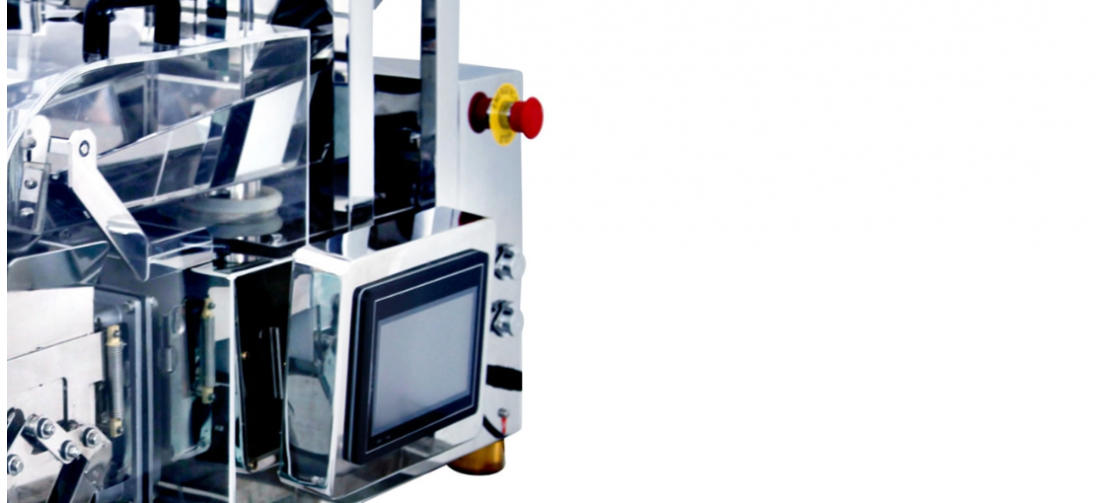

Equipped with a linear vibration weighing system and double tolva, it offers precise weight control, with adjustable tolerances in both negative and positive values. Its operation is optimised via a colour touch-screen panel, which allows easy programming and quick adjustments for different production needs.

It also has an out-of-tolerance discharge alarm and an automatic locking system to prevent errors in the event of a product shortage, guaranteeing total safety and efficiency in the process.

Robust and Functional Design

The support structure is made from solid AISI 304 stainless steel profiles, guaranteeing strength and stability. The support feet have anti-vibration rubber, reducing noise and impacts during operation.

Integration with Automatic Packaging Machines

This equipment is prepared for interconnection with Automatic Packaging Machines, providing a continuous workflow and greater productivity.

Technical Specifications

• AISI 304 stainless steel construction
• Degree of Protection IP54 - resistant to dust and splashes
• Power supply: 230 V 50/60 Hz Single phase
• Low Energy Consumption: 150 W
• Weighing range: from 10 g to 500 g
• ISO, FDA and HACCP compliant certification
