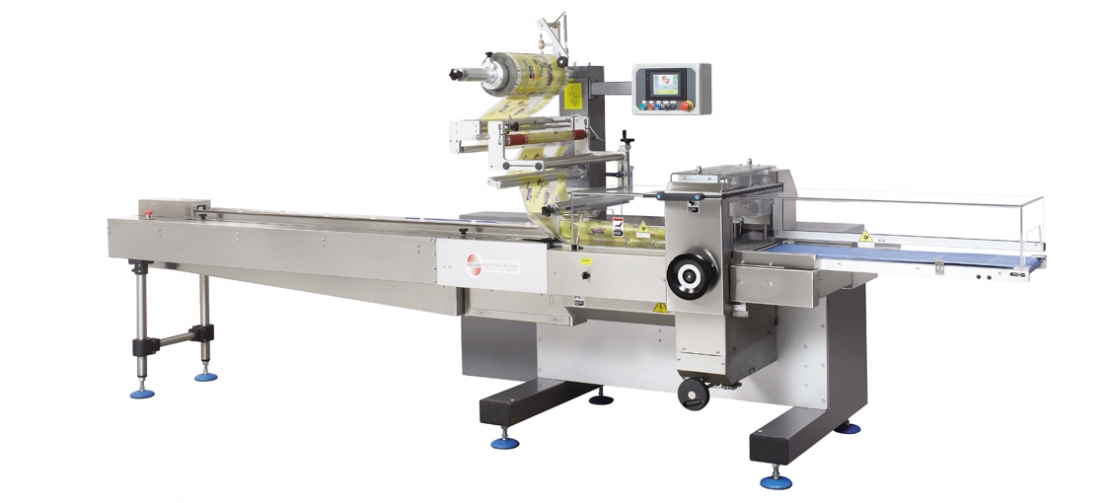

Automatic Flow-Pack Machine LYRA

Lyra is an Automatic Horizontal Flow-Pack Machine. It works with a flat sheet plastic coil to make a "pillow-pack" bag with 3 welds - two transverse welds and a longitudinal one. Equipment suitable for the food and technical sector.

• Main machine structure in painted steel RAL 9006 and stainless steel AISI 304  guards;
• Cantee lever style construction with all the mechanical transmissions positioned behind the machine separated from the product flow area;
• 2600mm long infeed conveyor (usable loading space 1800mm approx.) complete with stainless steel AISI 304 deck plates and side guards;
• Food grade nylon pushers and pushers supports;
• Longitudinal fin seal assembly carried out by 3 sets of independent fin wheels diameter 120mm. First set is for pulling, second one is for sealing and third one is for driving. Pneumatic opening of the fin wheels;
• One up-rotary motion sealing assembly with 300mm wide jaws and transverse or longitudinal sealing pattern complete with inclined cutting knife assembly. Sealing surface width 12,5mm;
• Electronic torque limiter on transverse sealing jaws;
• Motorization by means of 3 brushless motors  ,one for the infeed conveyor, one for fin wheels assembly and one for transverse jaws assembly;
• One self-centering cantilever film roll holder 600mm wide from the top;
• Discharge conveyor belt one meter long, complete of independent motor controlled by inverter;
• Shock proof Plexiglas safety guards with safety micro switches;
• Color touch screen with the possibility to store up to 99 working programs;
• One adjustable or one fixed forming box;
• Machine direction from left to right as shown on general catalog;
• Pneumatic components: FESTO;
• Machine built in accordance with CE standards;
• Voltage: 400V , 3PH , T+N
